fischer Zykon panel anchor FZP II 13 x 21 M8/17 CARBON

Name: fischer Zykon panel anchor FZP II 13 x 21 M8/17 CARBON
Brand: fischer

Tuotevaihtoehdot

CAD Data

Download of image data

Huippu ominaisuudet

Flush installation of panels with minor tolerances.
For all natural stones class I-IV.
Stress-free fixing enables high loads and use of thin panels.
Sleeve made of carbon fibre reinforced polyamid.

Tuotenumero 061502
BSN 100 VP
Tuotenumero 060711
FZPB 13
Tuotenumero 061500
SBN 502
Tuotenumero 060710
FZPB 11
Tuotenumero 804063
CNC adapter
Tuotenumero 535985
FZPB 13/21 CNC
Tuotenumero 802506
STU 10 - 30
Tuotenumero 802507
MST-D
Tuotenumero 802337
HVL 13
Tuotenumero 802338
DPL 13
Tuotenumero 044638
FZE 12 plus
Tuotenumero 521668
MUTTER M8 A4
Tuotenumero 521670
Lock nut M8 A4

The universal carbon fibre-reinforced undercut anchor for natural stone.

Edut

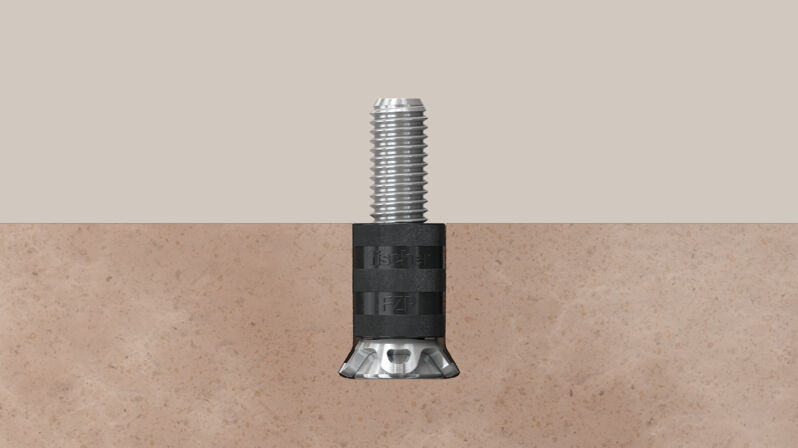

The adapted shape of the undercut anchor ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.
The fixing of the undercut anchor is not visible on the exposed side, creating a visually attractive and consistent façade surface.
Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel. This greatly reduces panel deflection.
The anchor allows for higher pull-out loads, compared to commonly available systems.
The flush-mounting technology of the undercut anchor allows an easy, economical handling of reveals.

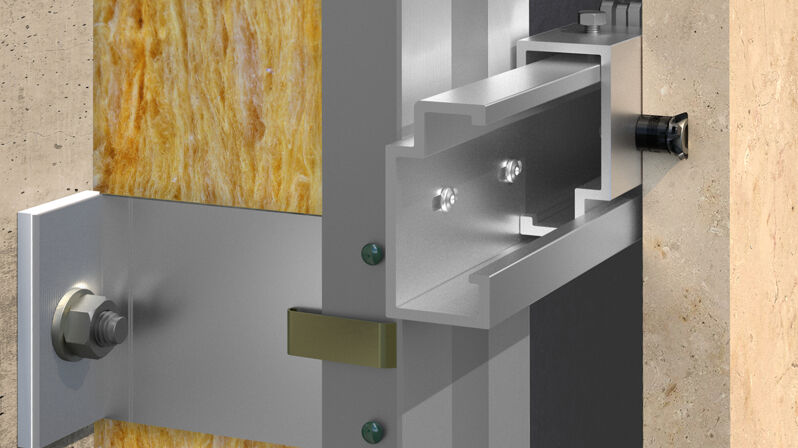

The concealed fixing solution for heavy, natural stone façade panels using the carbon fibre-reinforced undercut anchors with flush installation. These are fixed with a consistent drill hole depth aligned to the back of the panel. This type of fixing technology is used, for instance, with calibrated façade panels or for reveal angle installation.

ETA-hyväksyntä
Levyn min. paksuus	35 mm
Kiinnityssyvyys	21 mm
Kokonaispituus ( l )	38 mm
Installed anchor length	21 mm
Remaining thread length	17 mm
Kierre ( M )	M8
Cylindrical diameter	13 mm
Undercutdiameter	15,5 mm
Hyväksyntä maanjäristysalueille	C1 / C2
Järjestelmä	—
Määrä	250 Pa.
GTIN (EAN-Code)	4048962111620
