FZP II T Tergo+ Zykon ankkuri julkisivupaneelille

The concealed fixing solution for thin fibre cement façade panels from Equitone bigger than 8 mm in thickness, such as linea, tectiva, materia, natura, pictura. Use in conjunction with clasps systems on façades or with other attachments.

Tuotevaihtoehdot

Download of image data

Tuotevaihtoehdot

Miratimet / Raportet e testimit

7 variante produktesh

Levyn min. paksuus

Kokonaispituus

Kierre

Cylindrical diameter

Undercutdiameter

Määrä

Legjenda = Miratimi ekziston— = Miratimi nuk ekziston

Gesehen 7 von 7 Variante(n)

Edut

The anchors’ short geometry allows it to be used in thin panels with a thickness greater than 8 mm.
The fixing of the undercut anchor is not visible on the exposed side, creating a visually attractive and consistent façade surface.
The adapted shape of the undercut anchor ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.
Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel. This greatly reduces panel deflection.
The positive-locking anchor is free from expansion pressure and is attached at the fifth point in a structurally optimised location. This provides much better holding force than commonly available systems and allows for the use of large-format panels.

Toimintaperiaate / asennus

Use dry drilling with a diamond drill bit - first cylindrical, then conical - to drill an undercut hole.

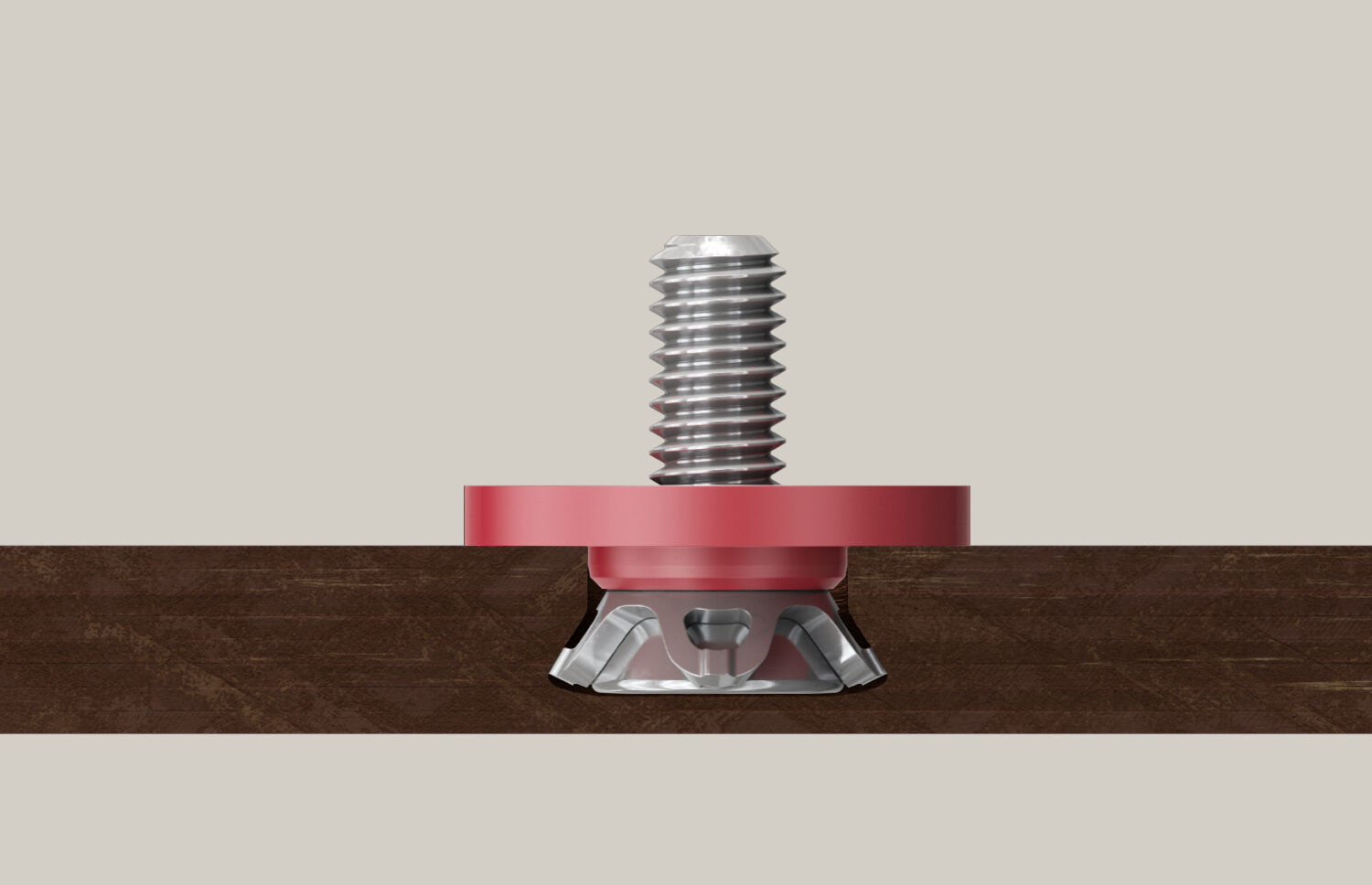

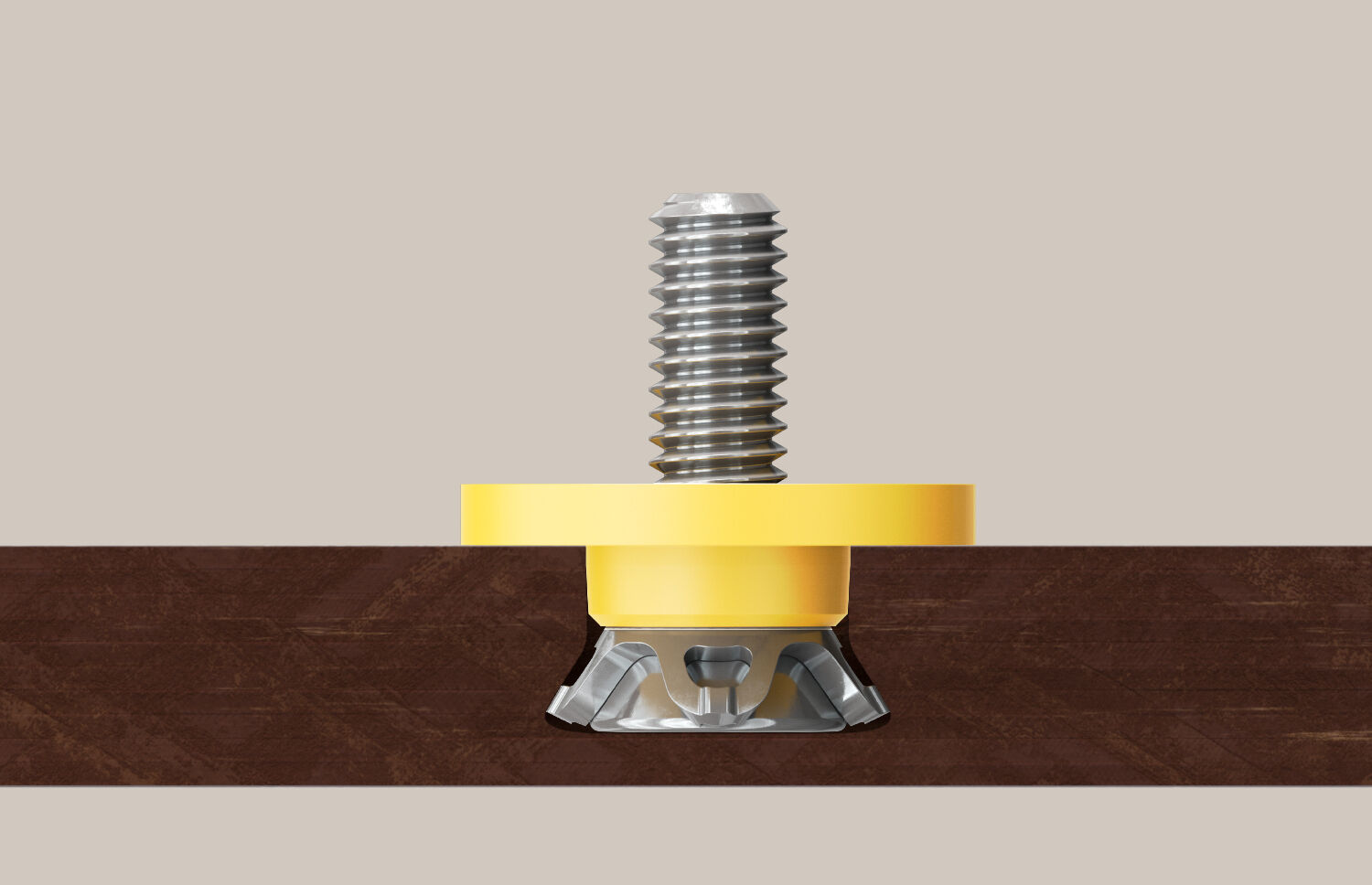

When the undercut anchor is installed, an optimal, positive-locking connection is created between the expanding part and the drill hole.
The anchor is installed flush to the absolute anchoring depth. After the anchor is set, the spacer washer will be in full contact with the surface of the material.

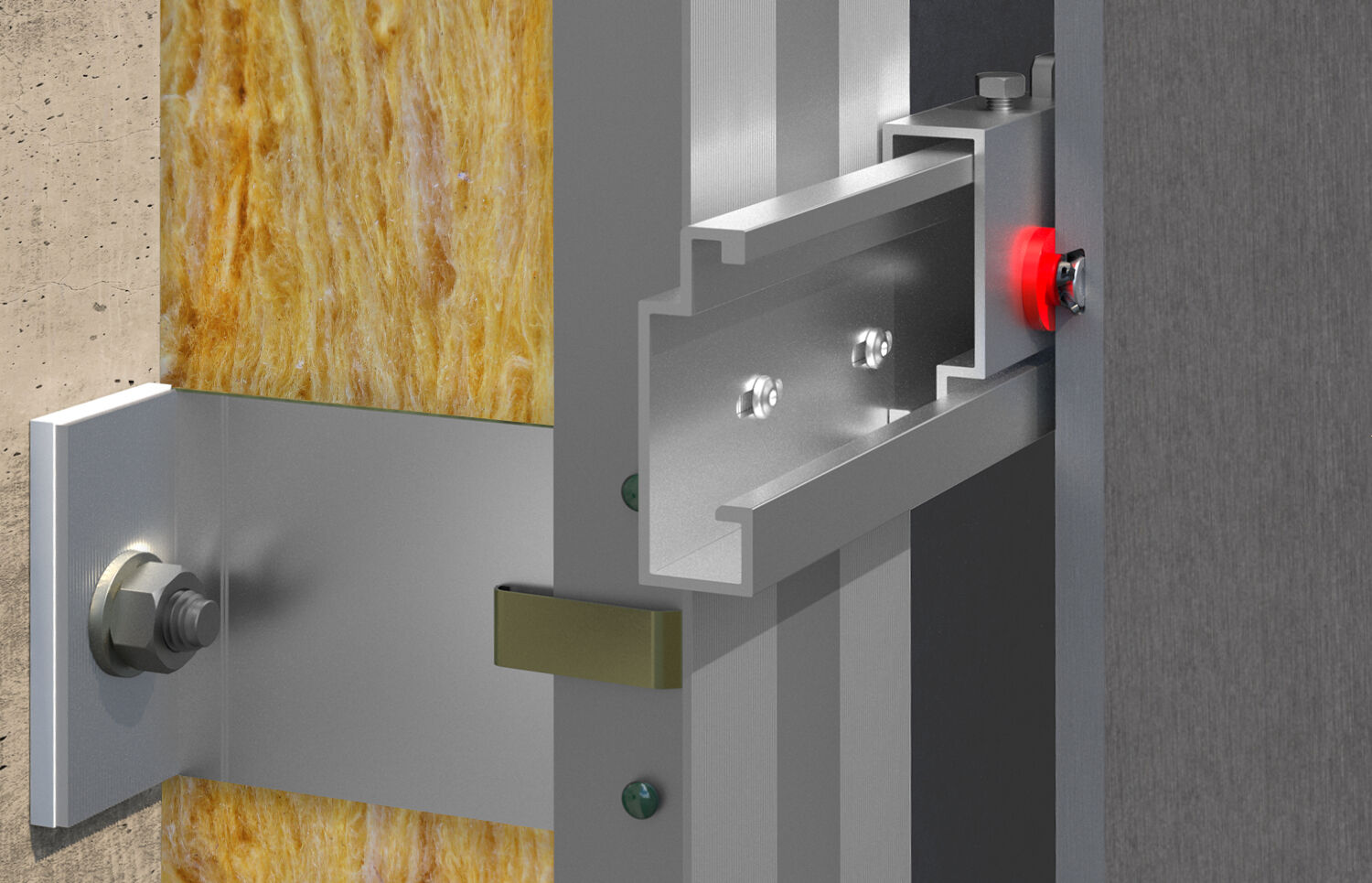

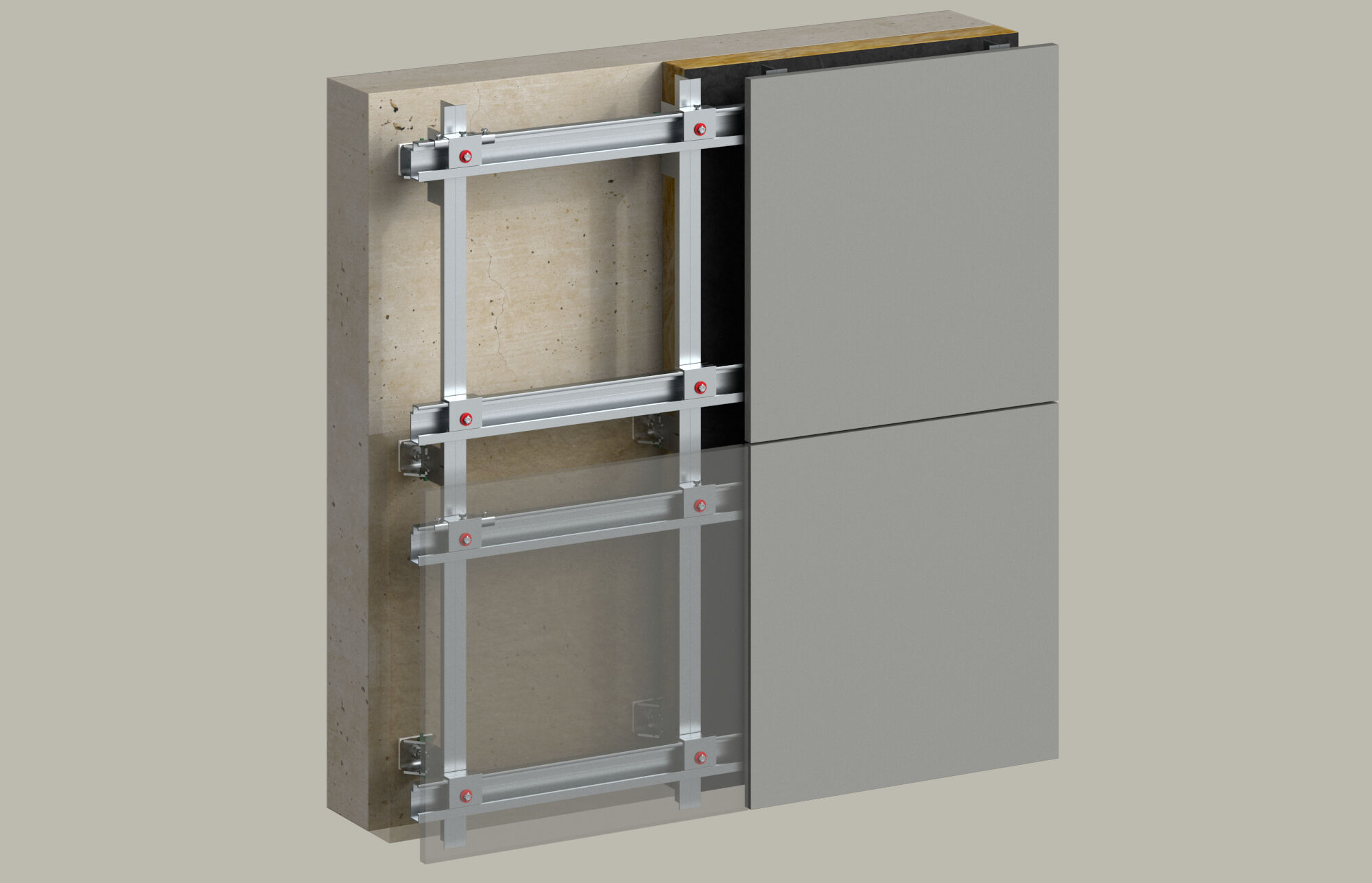

Mounting Strip 1 Picture

1 / 4

1
2
3
4

ETA-hyväksyntä
Levyn min. paksuus	8 mm
Kokonaispituus ( l )	18,5 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Määrä	250 Pa.
GTIN (EAN-Code)	4048962362091

ETA-hyväksyntä
Levyn min. paksuus	8 mm
Kokonaispituus ( l )	20,5 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Määrä	250 Pa.
GTIN (EAN-Code)	4048962362107

ETA-hyväksyntä
Levyn min. paksuus	8 mm
Kokonaispituus ( l )	18,5 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Määrä	250 Pa.
GTIN (EAN-Code)	4048962217704

ETA-hyväksyntä
Levyn min. paksuus	8 mm
Kokonaispituus ( l )	21,5 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Määrä	250 Pa.
GTIN (EAN-Code)	4048962217711

ETA-hyväksyntä
Levyn min. paksuus	10 mm
Kokonaispituus ( l )	20,5 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Määrä	250 Pa.
GTIN (EAN-Code)	4048962260014

FZP II T Tergo+ Zykon ankkuri julkisivupaneelille

Tuotevaihtoehdot

Edut / Tuotekuvaus

Kokoamisohje

ETA-hyväksyntä
Levyn min. paksuus	12 mm
Kokonaispituus ( l )	21,5 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Määrä	250 Pa.
GTIN (EAN-Code)	4048962217728
