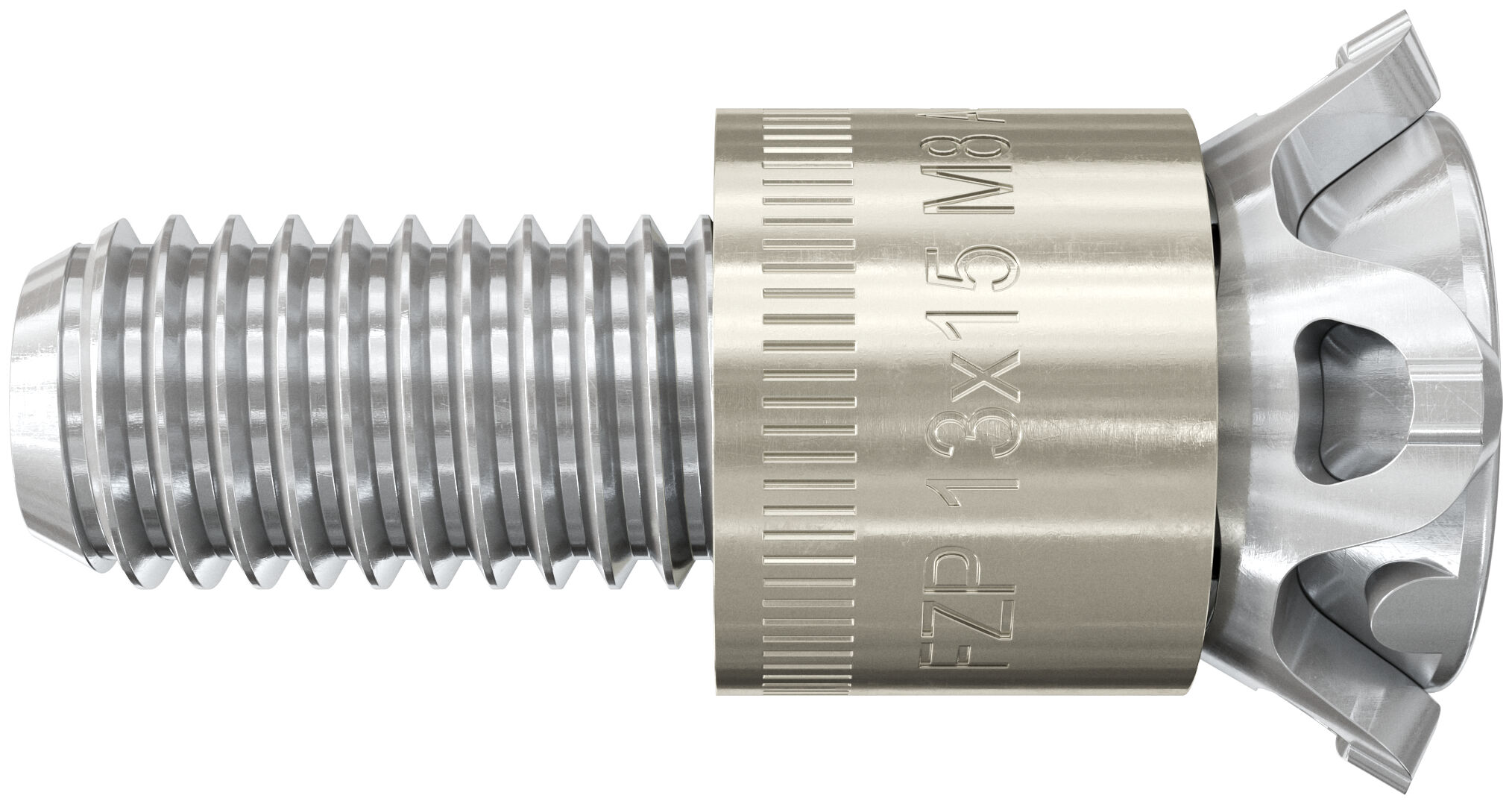

fischer Zykon panel anchor FZP II 11 x 12 M6/18 A4

Huippu ominaisuudet

Flush installation of panels with minor tolerances and reveal panels.
For all natural stones class I-IV.
Stress-free fixing enables high loads and use of thin panels.
Sleeve made of stainless steel.

The universal undercut anchor made of A4 stainless steel for natural stone.

Edut

The adapted shape of the undercut anchor ensures a positive-locking attachment free from expansion pressure in a conical undercut drill hole.
The fixing of the undercut anchor is not visible on the exposed side, creating a visually attractive and consistent façade surface.
Setting the anchor using undercut technology allows the user to always select the optimal structural position in the façade panel. This greatly reduces panel deflection.
The anchor allows for higher pull-out loads, compared to commonly available systems.
The flush-mounting technology of the undercut anchor allows an easy, economical handling of reveals.

The concealed fixing solution for heavy natural stone façade panels using A4 stainless steel undercut anchors with flush installation. These are fixed with a consistent drill hole depth aligned to the back of the panel. This type of fixing technology is used, for instance, with calibrated façade panels or for reveal angle installation.

ETA Certification Document

pdf, ETA-11/0145

European Technical Assessment for fischer-Zykon-panel anchor FZP II - Fastener for the rear fixing of facade panels made of selected natural stones according to EN 1469

Luotu 09.06.2022

DOP - Declaration of Performance

pdf, DoP No. 0307

Declaration of Performance for fischer Zykon-panel anchor FZP II

Luotu 01.07.2022

DOP - Declaration of Performance

pdf, DoP No. 0261

Declaration of Performance for fischer Zykon-panel anchor FZP II

Luotu 11.01.2021

ETA Certification Document

pdf, ETA-22/0400

European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels

Luotu 25.08.2022

DOP - Declaration of Performance

pdf, DoP No. 0322

Declaration of Performance for fischer Zykon-panel anchor FZP II (for Mirage)

Luotu 12.10.2022

Lisätarvikkeet

ETA-hyväksyntä
Kiinnityssyvyys ( h_ef )	12 mm
Levyn min. paksuus	20 mm
Tyyppi	Bündiganker
Kokonaispituus ( l )	30 mm
Projection length	18 mm
Kierre ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Materiaali	A4
Kuorimateriaali	A4
Määrä	250 Pa.
GTIN (EAN-Code)	4048962112443
